MONO-YUKON

Torna alla lista

Application fields

Agriculture
Industry
Home
Building
Food & beverage

Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-5°C +60°C

Description

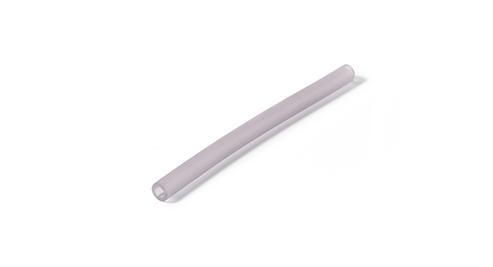

Soft PVC Crystal without reinforcement.

Hose for food liquid transport without pressure.

Suitable for contact with food and food liquids Simulant A.B.C and alcoholic liquids up to 20% In compliance with Regulation (EC) No. 1935/2004, Regulation (EC) No. 2023/2006 and Regulation (EU) No. 10/2011 and its successive amendments. Compliant with the KTW / UBA Directive.

Phthalate FREE.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
597006405723----100200080x120
597006506827----100200080x120
5970066081035----100200080x120
59700670101292----1002000110x130
597006801317112----501000110x130
597006901620138----501000110x130

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE:
DIMENSION TOLERANCE: from 4 mm to 6 mm: ± 0.2 mm | from 7 mm to 9 mm: ± 0.3 mm | from 10 mm to 16 mm: ± 0.5 |from 16 mm > ±5% | other values +- 5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
