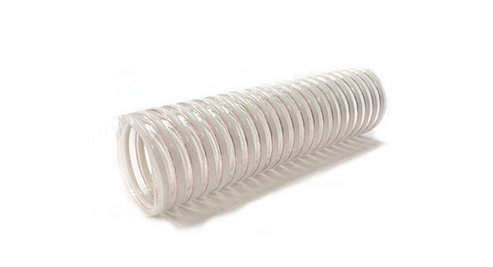

ANTISTATIC Ribbon

NOTES:
ELETRICAL RESISTENCE (OHM/m) = 0,075 ± 5%
The electrical control of continuity MUST be done after assembling the antistatic hose with sleeves or on final application. This activity is demanded to our customers/finaol users. This  control has to be performed constantly during the use of the product
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 12 mm to 20 mm: ± 0.3 mm | from 22 mm to 50 mm: ± 0.5 mm | from 51 mm to 100 mm: ± 1.0 mm | from 102 mm to 150 mm: ± 1.5 mm from 152 mm to 200 mm: ± 2.0 mm  other values: ±5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
