MOULDS

With full integration of company STF S.p.A acquired in 2018, TPReflex Group fulfil its technological capacity of plastic components injection tools design and construction.

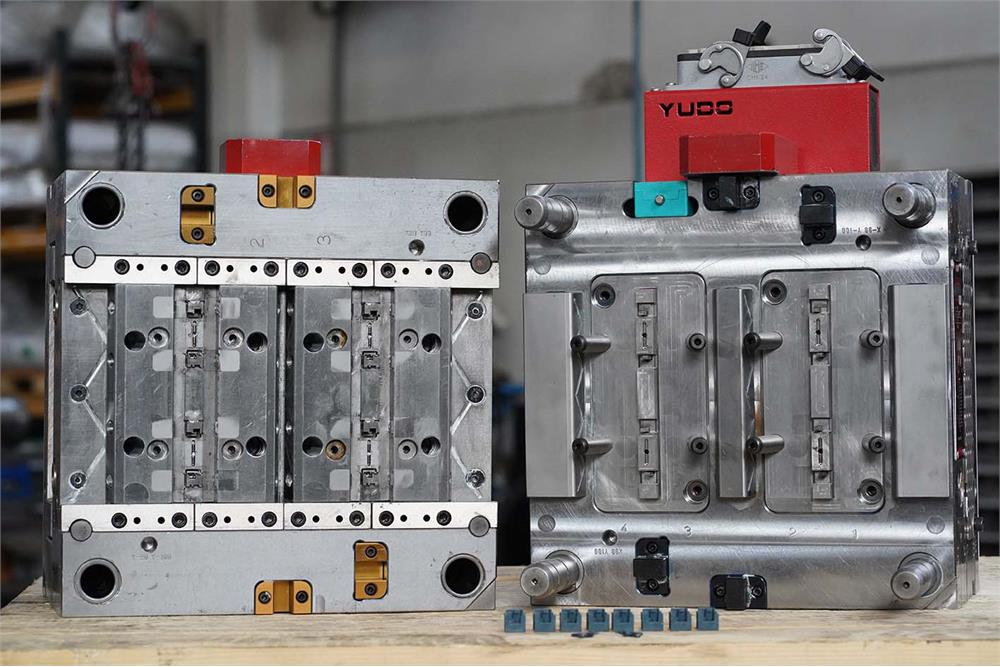

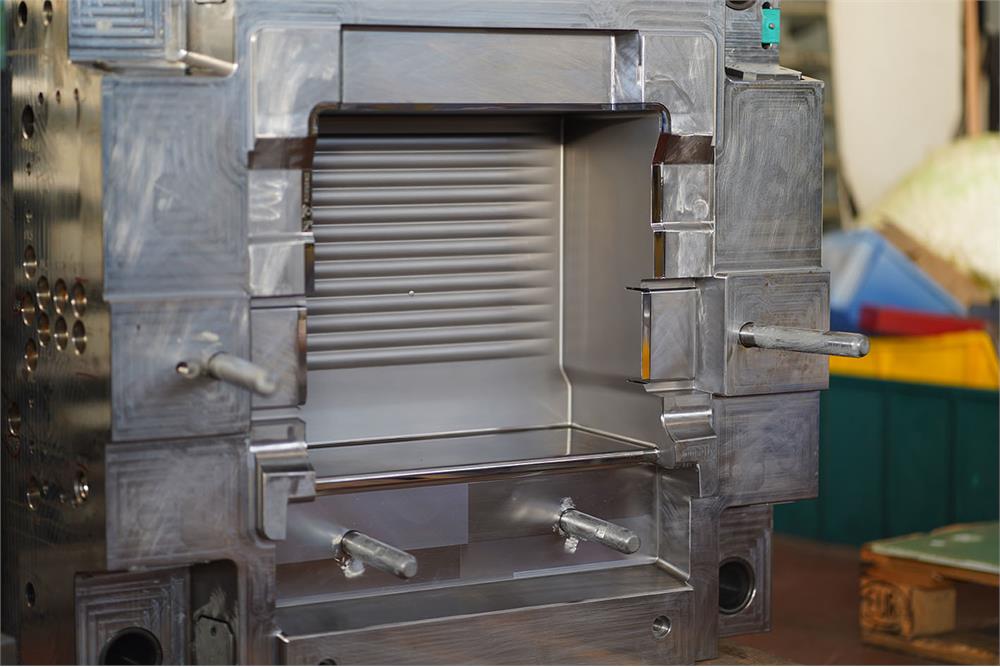

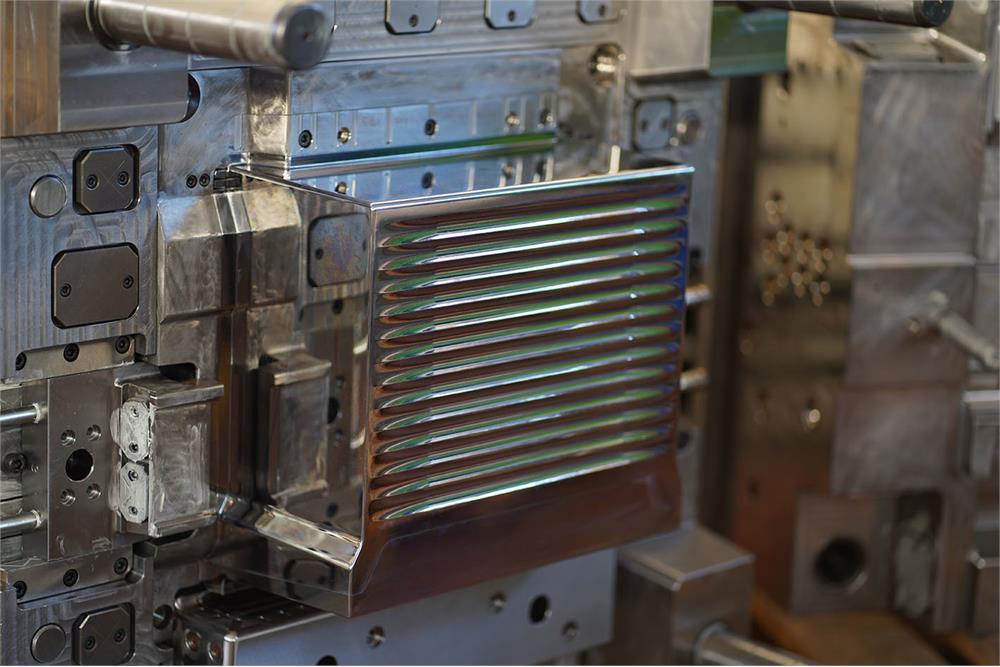

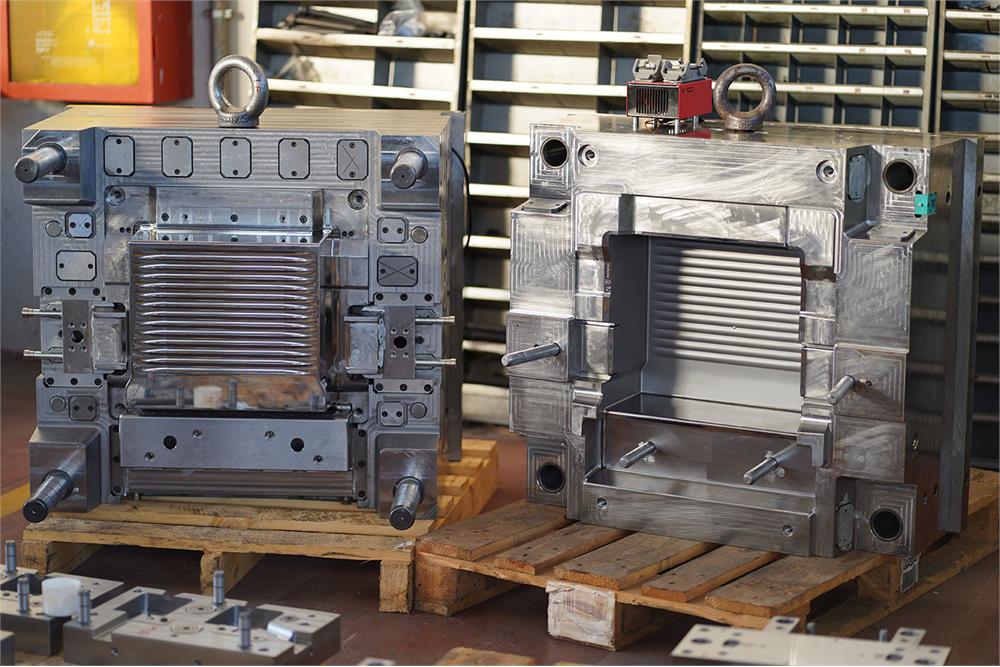

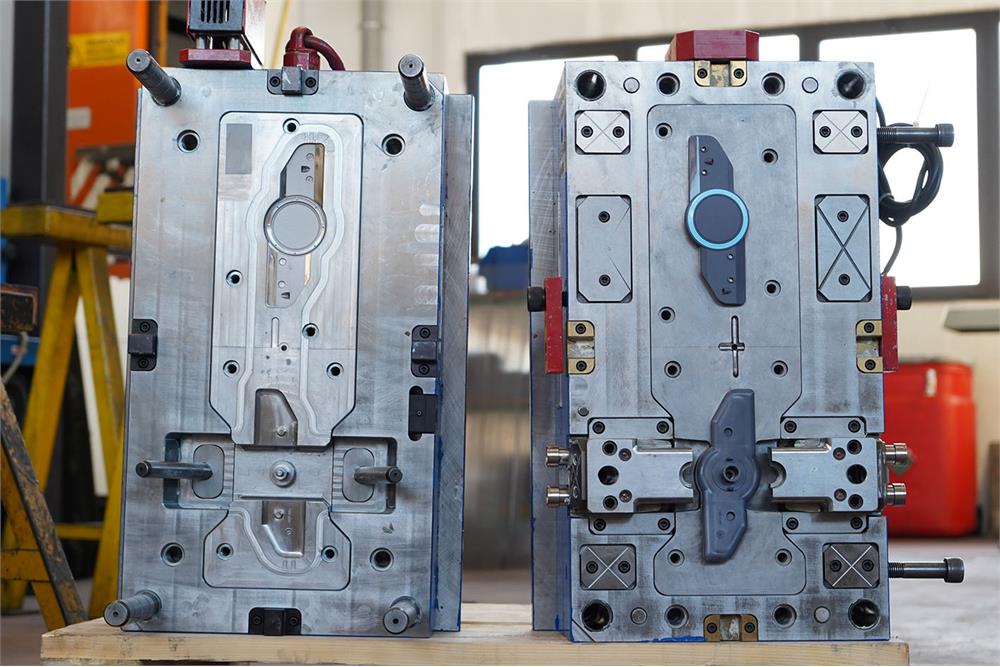

Today TPReflex manufactures moulds from small to medium-large sizes (up to 12 tons) starting from the design phase (with the possibility of also carrying out product development activities) up to the completion of the testing phase.
The availability of a fleet of moulding machines from 25 to 1300 tons also allows the production of pre-series or productions on customer request.
The mould life cycle managing is completed by availability of mould maintenance toolshops in Italy and in Poland.

Plastic molds and die casting

Mould Design

TPReflex Tool Division deals with the development of the mold project from concept phase till post-trial mold project fine-tuning.

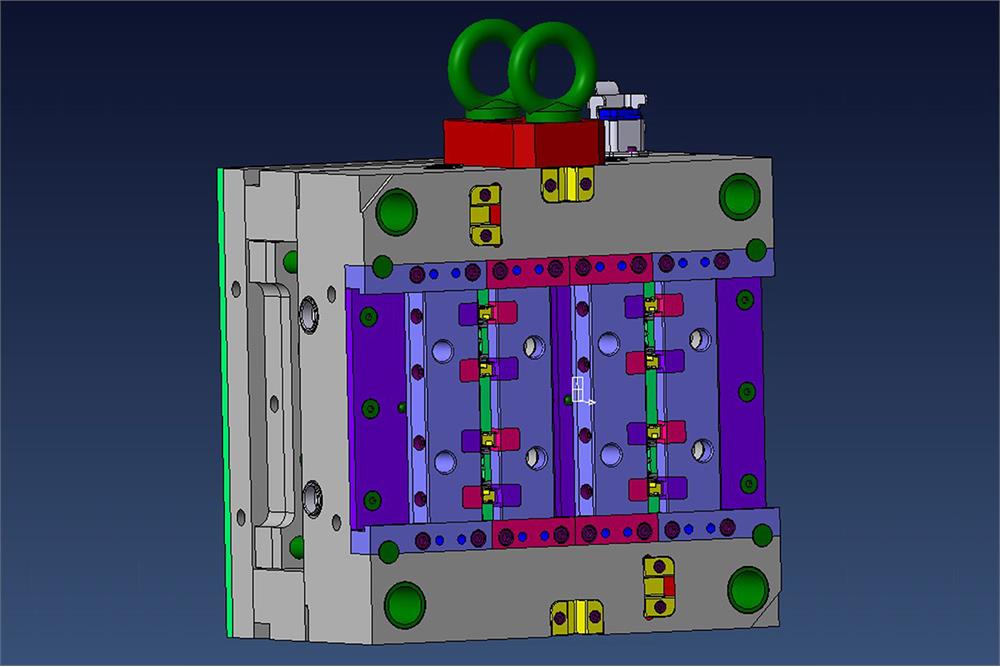

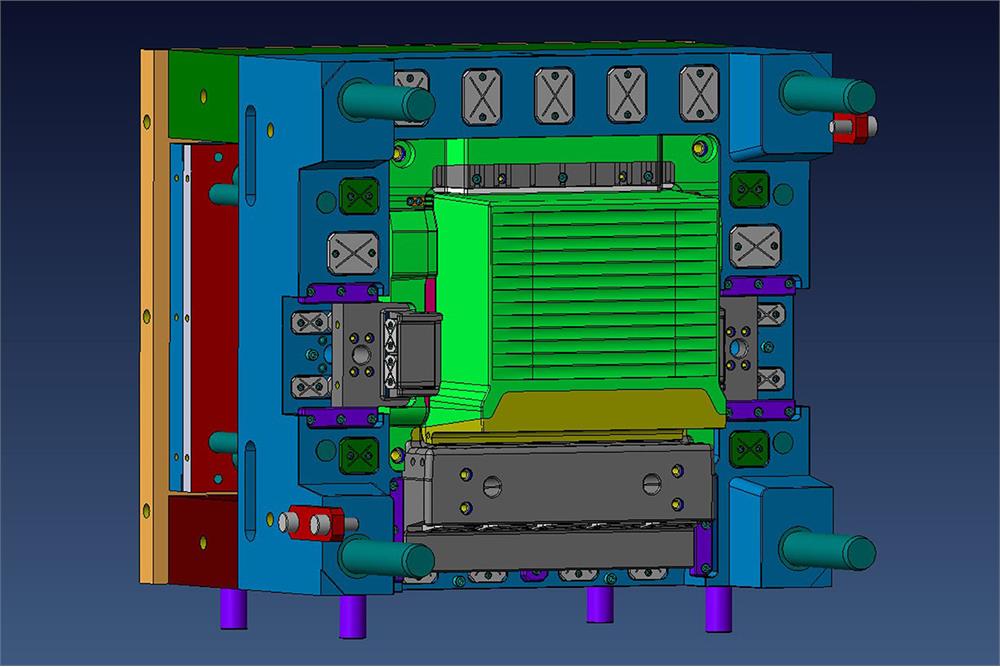

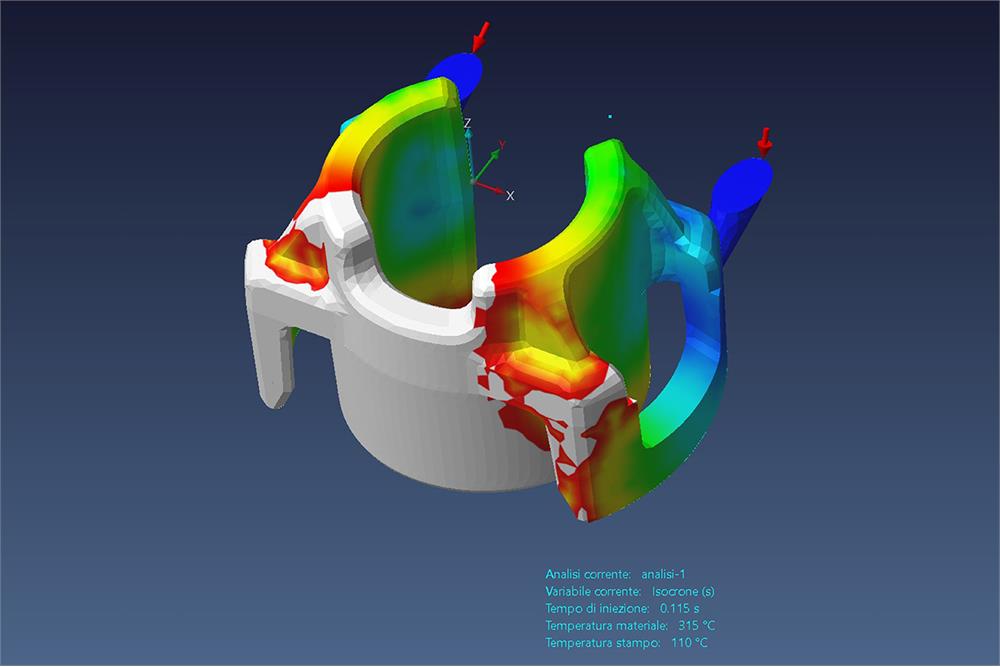

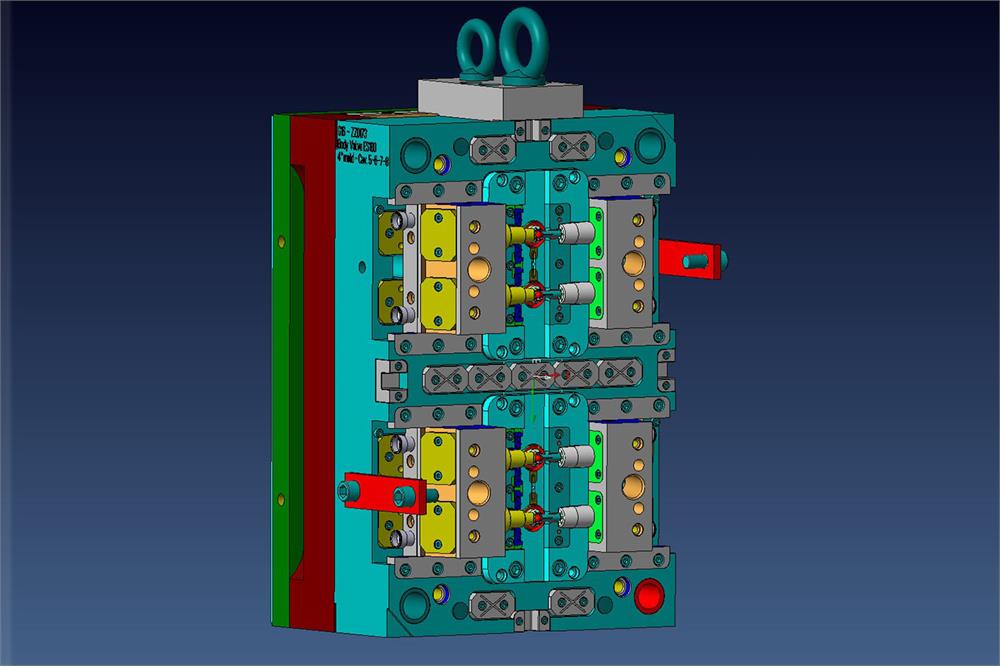

The design is supported by software dedicated to solid modeling (3D CAD) and molding process simulation  (MOLD FLOW ANALYSIS)
The close collaboration with the product design of TP Reflex and the Customer (co-engineering activities) allow to optimize the Product-Mold synergy. In addition, the sharing of many years of experience in the production of moulded and overmoulded parts on a wide range of machines facilitates the inclusion in the mould design of solutions that optimise both the moulding process and the maintenance of the mould during life cycle.

Machines

Description:

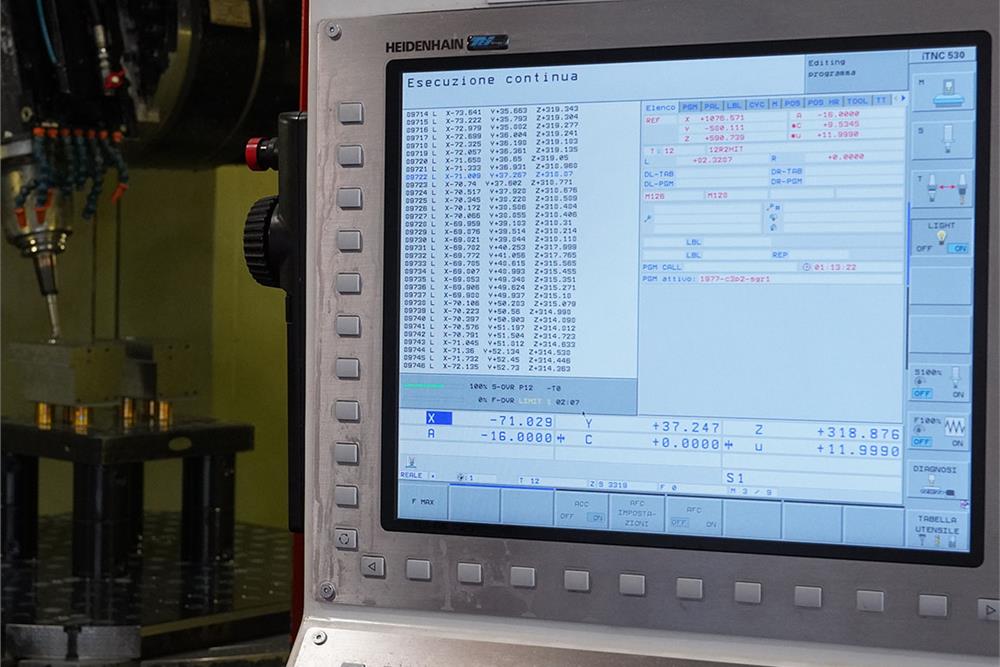

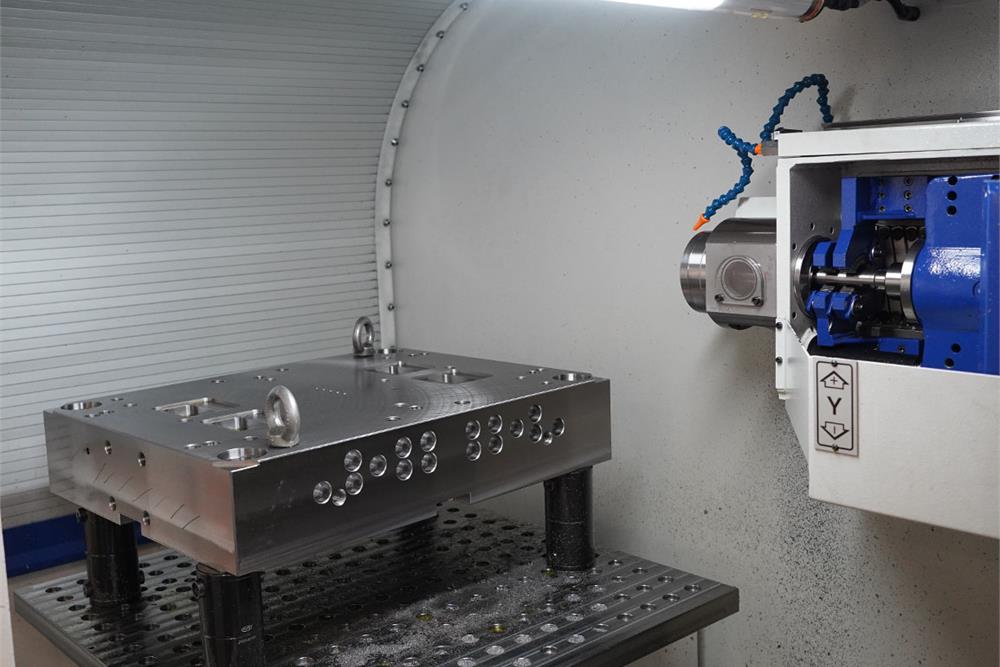

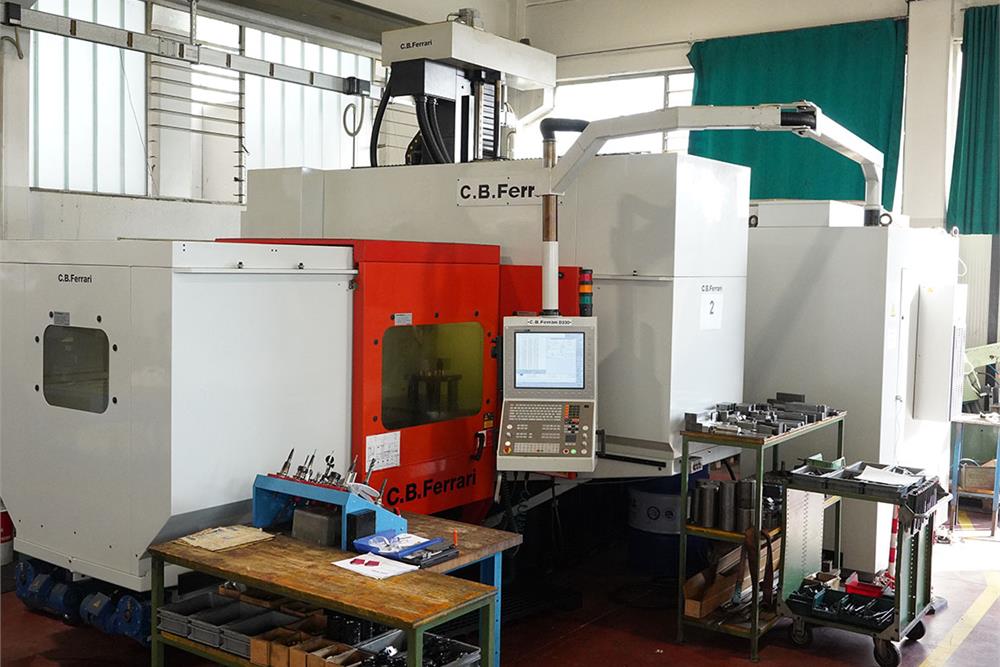

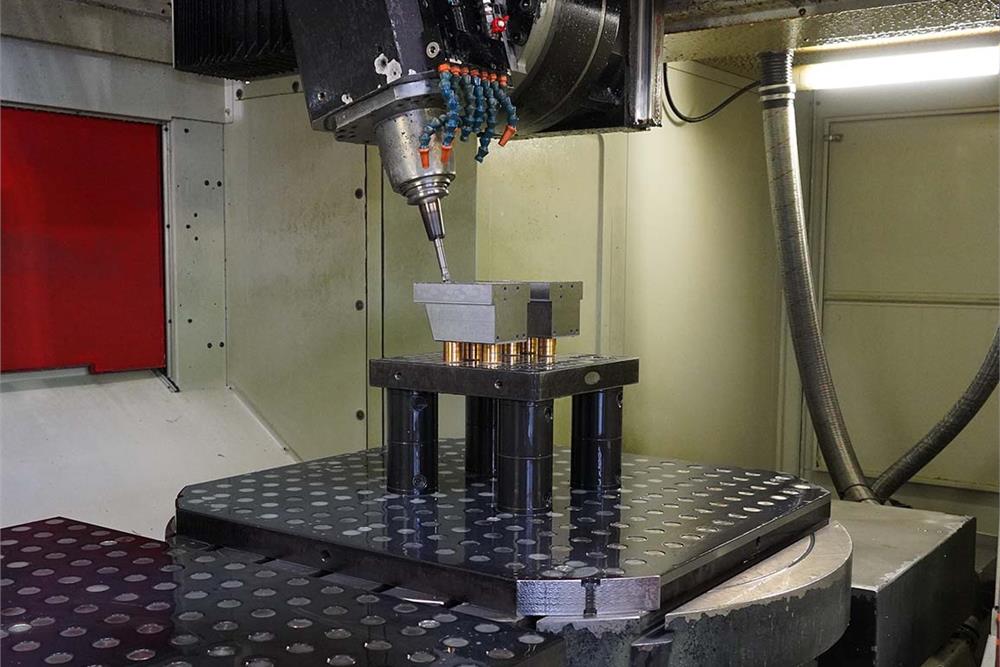

N°3 CNC MACHINING CENTERS 5 AXIS
[DIM. UP TO 1.600 X 1.600 X 820 mm / SPEED UP TO 30.000 rpm]

N°3 CNC MACHINING CENTERS 3 AXIS
[DIM. UP TO .000 X 1.000 X 500 mm / SPEED UP TO 18.000 rpm]

N°1 DRILLING MACHINE 3 AXIS - ROTARY TABLE
[DIM. UP TO 600 X 600 mm / SPEED UP TO 4.200rpm]

N°1 CNC TURNING MACHINE 2 AXIS
[DIM. UP TO 1.500 X Ø 370 mm / SPEED UP TO 7.000 rpm]

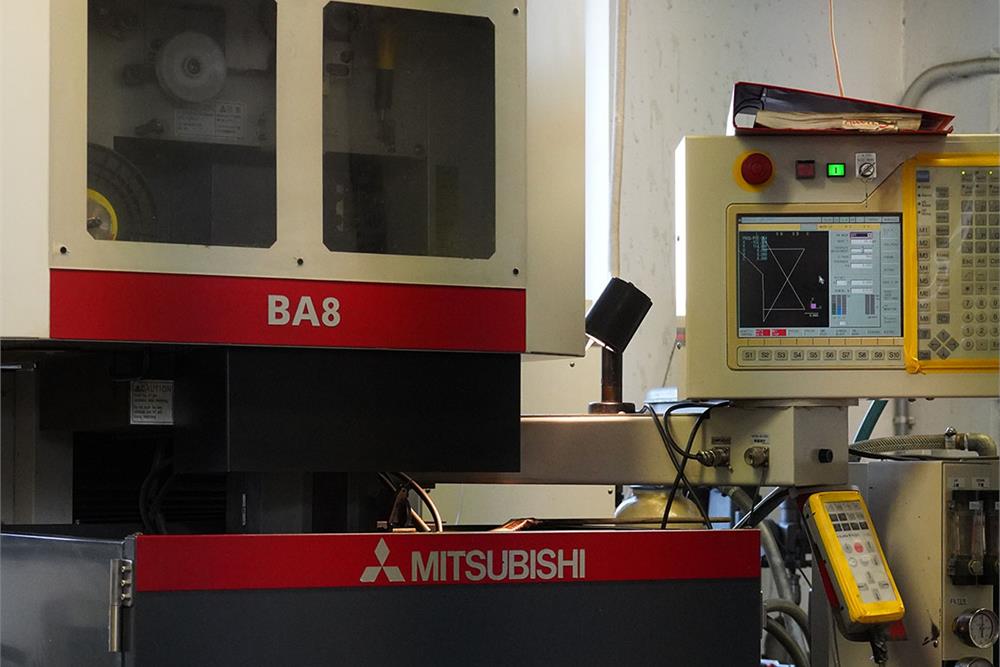

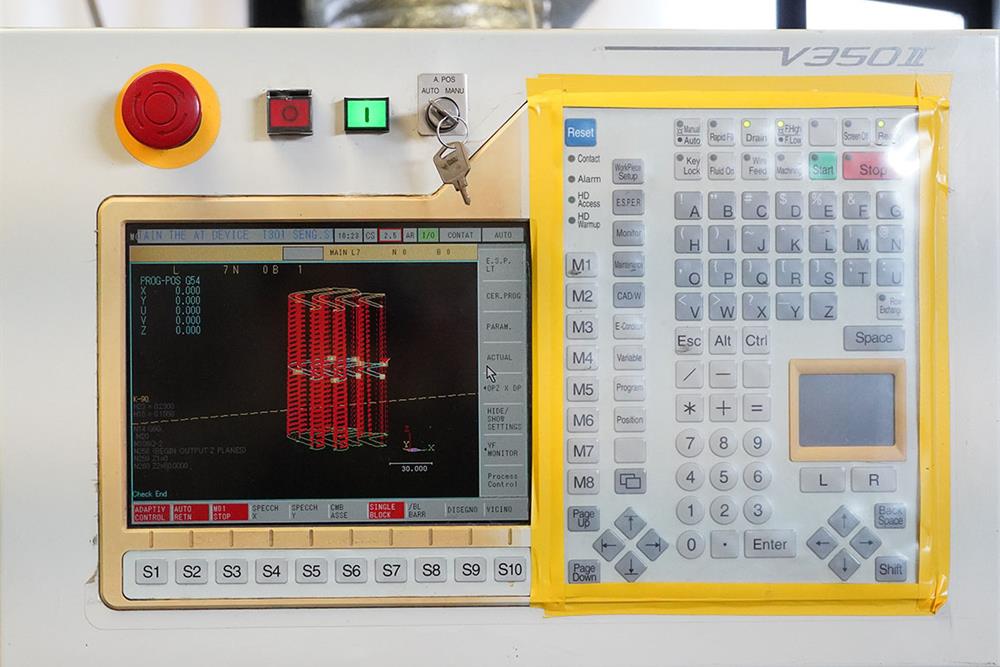

N°2 WIRE EDM MACHINE
[DIM. UP TO 600 X 400 X 310 mm ]

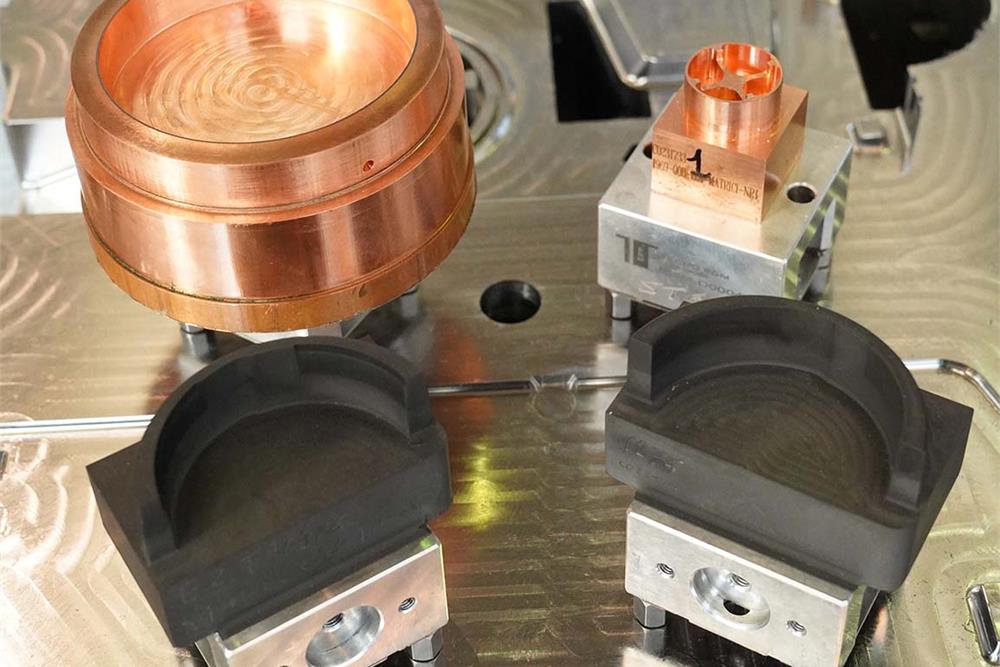

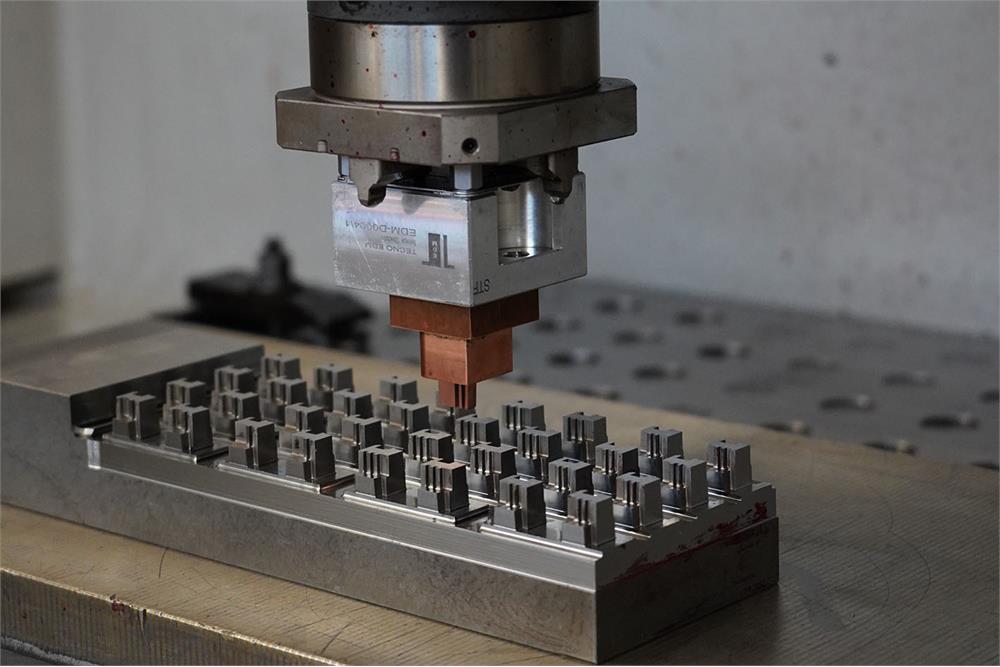

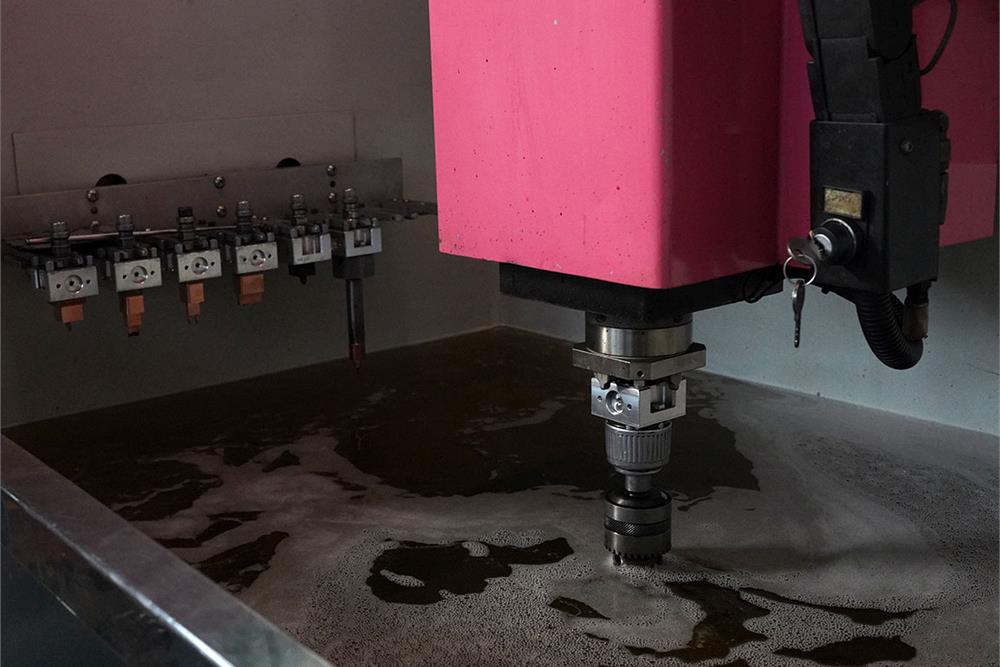

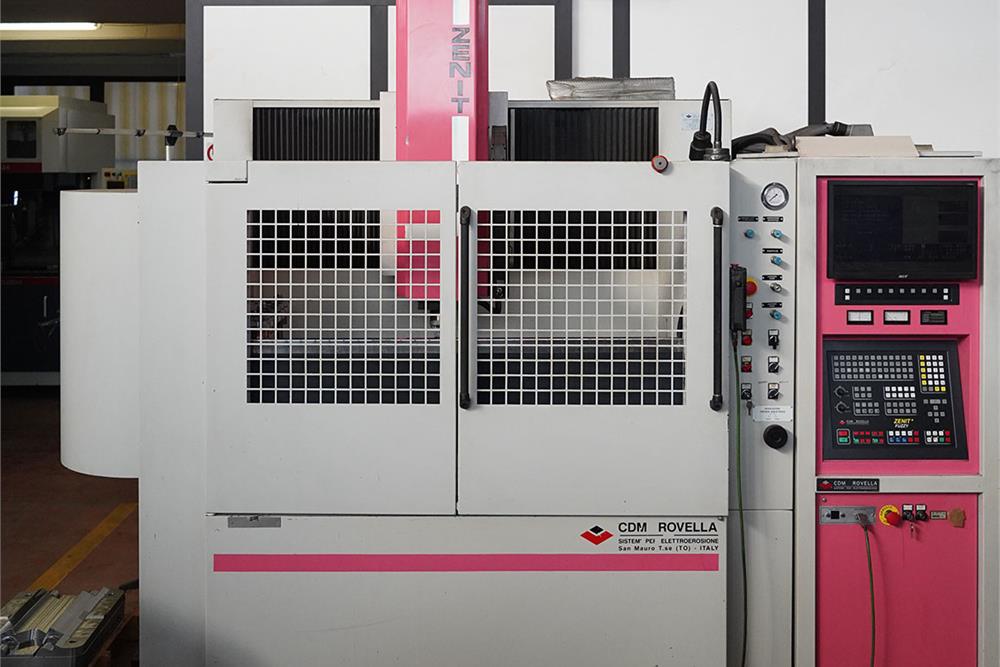

N°3 SINKING EDM MACHINES 4 AXIS
[DIM. UP TO 400 X 300 X 250 mm]
