Application fields

Agriculture
Industry
Home
Building
Food & beverage

Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-15°C +60°C

Description

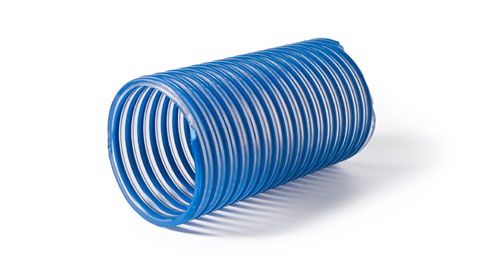

Soft Trasparent PVC hose, MEDIUM duty with hard blu PVC spiral.

Suitable for suction and delivery of dirty water.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
587L…….1 1\4"3241600176515850100080x120
587L…….354465019351585050080x120
587L…….1 1\2"384870020951585030080x120
587L…….405072022051585030080x120
587L…….1 3\4"455590024851585030080x120
587L…….5061105027551585030080x120
587L…….2"5162107528151585030080x120
587L…….55661150303412850300110x130
587L…….60711250330412850250110x130
587L…….2 1\2"63741390347412850250110x130
587L…….75871700413412850250110x130
587L…….3"76881725418412850250110x130
587L…….80921850440412830180110x130
587L…….3 1\2"90104225049539830150110x130
587L…….100114270055039830150110x130
587L02704"102116272061239830150110x130
587L…….110125310066039830120110x130
587L…….120130,5360072026830120110x130
587L…….125140,538507502683090110x130
587L…….5"127142,539007622683090110x130
587L…….130145,541007802683090110x130
587L…….150166,549509752682080110x130
587L06306"152168,550009882682060110x130
587L…….16017756001040---2060110x130
587L…….200218100001300---1060110x130

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 12 mm to 20 mm: ± 0.3 mm | from 22 mm to 50 mm: ± 0.5 mm | from 51 mm to 100 mm: ± 1.0 mm | from 102 mm to 150 mm: ± 1.5 mm from 152 mm to 200 mm: ± 2.0 mm | other values: ±5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
